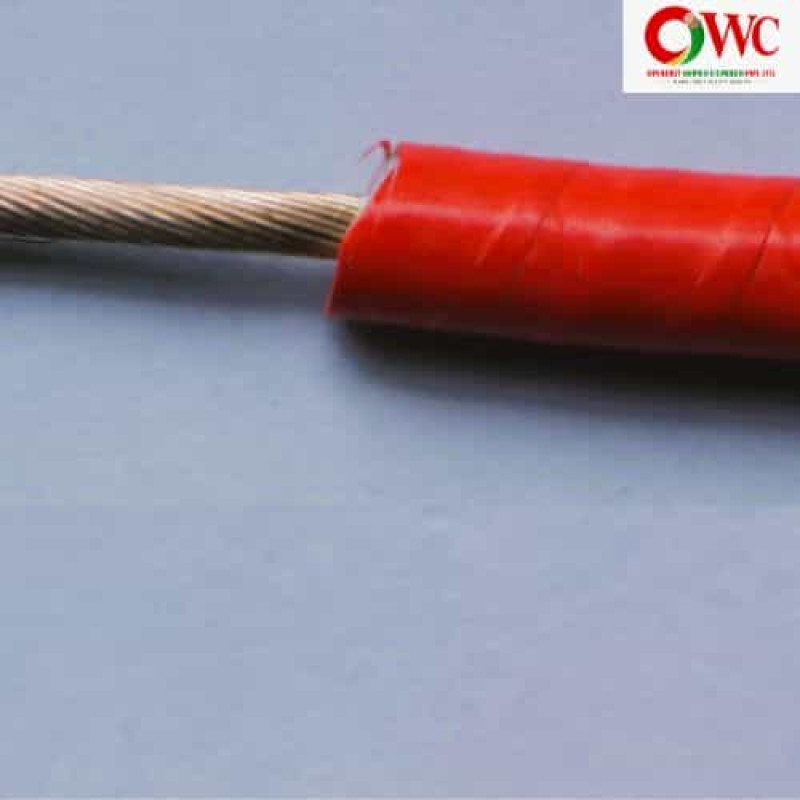

PTFE High Voltage Corona Resistance or CR Cables

We manufacture PTFE High Voltage Corona Resistance (CR) Cables designed for demanding high-voltage applications. These cables are available in conductor sizes from AWG 26 to AWG 10 and operate reliably from 4,000 VAC up to 22,000 VAC (or 9,000 VDC to 49,000 VDC).

Key Features:

Insulation: Corona-Resistant PTFE
Conductor: Silver-Plated Copper (SPC), with options per customer requirement
Voltage Rating: 4,000 VAC to 22,000 VAC / 9,000 VDC to 49,000 VDC
Temperature Range: -65°C to +260°C
Shielding Options: Braid or helically wrapped (served) shields
Shield Materials: SPC, NPC, TPC, BC, SS, or custom
Jacket: Durable PTFE in all standard electronic and bi-color options

Testing:

Dielectric & Spark Testing: 100% length under water
Progressive Stress Testing: Sample-based performance assurance

Product Details:

Conductor Size	AWG 26 To AWG 10
Voltage Rating (AC)	4,000 VAC To 22,000 VAC
Voltage Rating (DC)	9,000 VDC To 49,000 VDC
Operating Temperature	-65°C To +260°C
Insulation Material	Corona Resistant PTFE
Conductor Material	Silver Plated Copper (SPC) Or As Per Customer Requirement
Shield Type	Braided Or Helically Wrapped (Served)
Shield Materials	SPC, NPC, TPC, BC, SS Or As Required
Jacket Material	PTFE
Jacket Colour	All Electronic Colours And Bi-colours
